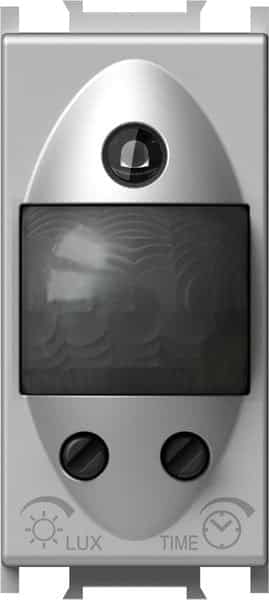

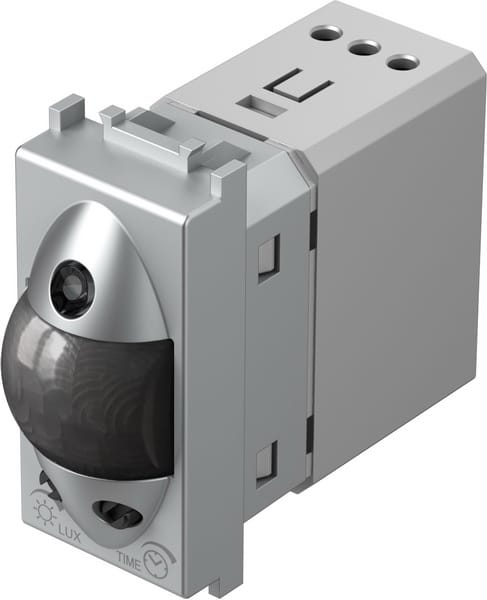

– IR infrared switch
– supply voltage: 230V~ ±10 % 50Hz
– relay: 5A / 250V~ output for limited current with
high resistance for zero crossing
– protection rating: IP40
– cross-section of wires at the contact
terminal: 0.75 – 2.5 mm2
– detection angle: up to 110° at 20°C
– detection area: approx. 8 m at 20°C
– adjustability of duration: from approx. 5 s to 12 min
– adjustability of brightness: from approx. 5 to 200 LUX
– operating temperature: from 0°C to +40°C
– not suitable for installation in 45 mm deep boxes and surface mount box CUBO IP20
– only for indoor usage
