– universal electronic dimmer for ON/OFF switching and dimming of all
dimmable lamps (classical, halogen, LED, CFL, …) and some no-dimmable lamps
– automatic detection of lamp type and adjustment of operating mode
– reduction of energy consumption
– soft start function extends life of lamps
– controlled by build-in micro switches
– memory function included – memorizes brightness on turn-off
– up to five (5) additional control units EM26 can be connected
– connection with 2-way switch is not possible
– build-in short-circuit, overheating and overload protection
– supply voltage 230V~ 50Hz
– elegant LED illumination, adjustable colour and brightness

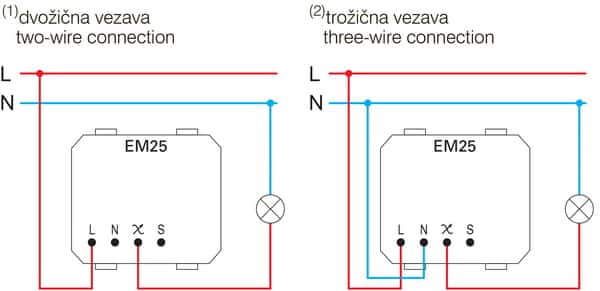

– replacement of classical switch is possible at two-wire connection(1)
– full functionality is achieved at three-wire connection(2)
– in accordance with EN 60669-1 and EN 60669-2-1
– screw contacts 1.5mm2 (max. tightening torque 0.4Nm)
